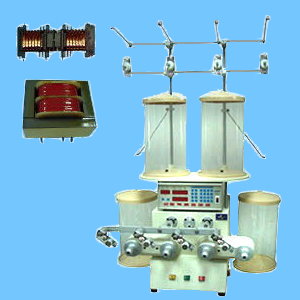

JW-504 CNC Two Spindle Winding Machine |
|
| |
 |
 |
 |
| |
| |
POWER |
AC110V / 220V 50 / 60 HZ |
| |
MAIN MOTOR |
DC90 / 180V |
| |
SPREAD |
Stepping Motor |
| |
PITCH |
0.001-9.999mm |
| |
MEMORY |
999 Step |
| |
WIRE SIZE |
Ø 0.4mm
max |
| |
R.P.M. |
3000-8000 rpm max |
| |
SPREAD RANGE |
0-100mm |
| |
WINDING DIA. |
140 mm |
| |
WEIGHT |
53 Kg |
| |
DIMENSION |
750(W)*500(L)*460(H)mm |
| |
|
750(W)*500(L)*980(H)mm |
|
|
|
 |
| |
 |
 |
|
| |
| |
| |

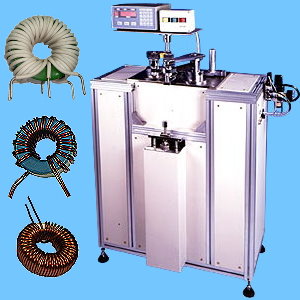

JTW-60 Toroidal Coil Winder |
|
|
| |
|
 |
|
| |
| |
POWER |
AC110V / 220V 50 / 60 HZ |
| |
COMPRESSOR
SUPPLY |
4 Kg
/ Cm2 |
| |
POWER
CONSUMPTION |
500W |
| |
ROTATION
SPEED |
50 rpm |
| |
WIRE SIZE |
Ø 0.4~3.0mm |
| |
O.D. of
TOROIDAL |
Ø
80mm max |
| |
I.D.
(FINISHED) |
Ø
4mm min |
| |
HEIGHT OF
TOROIDAL(MAX) |
50 mm |
|
|
|
|
| |
|
FUNCTION: |
|
Semi - automatic hook
winder. |
|
Able to set - up the
winding pitch. |
|
Able to set - up the
winding turns. |
|
Able to set up - up the
direction of forward or reverse winding. |
|
|
|
|
|
|
| |
|
 |
|
